Tsc1 haploinsufficiency in Nkx2.1 cells upregulates hippocampal interneuron mTORC1 activity, impairs pyramidal cell synaptic inhibition, and alters contextual fear discrimination and spatial working memory in mice
Molecular Autism volume 11, Article number: 29 (2020)
Mutations in TSC1 or TSC2 genes cause tuberous sclerosis complex (TSC), a disorder associated with epilepsy, autism, and intellectual disability. TSC1 and TSC2 are repressors of the mechanistic target of rapamycin complex 1 (mTORC1), a key regulator of protein synthesis. Dysregulation of mTORC1 in TSC mouse models leads to impairments in excitation-inhibition balance, synaptic plasticity, and hippocampus-dependent learning and memory deficits. However, synaptic inhibition arises from multiple types of inhibitory interneurons and how changes in specific interneurons contribute to TSC remains largely unknown. In the present work, we determined the effect of conditional Tsc1 haploinsufficiency in a specific subgroup of inhibitory cells on hippocampal function in mice.
We investigated the consequences of conditional heterozygous knockout of Tsc1 in MGE-derived inhibitory cells by crossing Nkx2.1Cre/wt;Tsc1f/f mice. We examined the changes in mTORC1 activity and synaptic transmission in hippocampal cells, as well as hippocampus-related cognitive tasks.
We detected selective increases in phosphorylation of ribosomal protein S6 in interneurons, indicating cell-specific-upregulated mTORC1 signaling. At the behavioral level, Nkx2.1Cre/wt;Tsc1f/wt mice exhibited intact contextual fear memory, but impaired contextual fear discrimination. They displayed intact spatial learning and reference memory but impairment in spatial working memory. Whole-cell recordings in hippocampal slices of Nkx2.1Cre/wt;Tsc1f/wt mice showed intact basic membrane properties, as well as miniature excitatory and inhibitory synaptic transmission, in pyramidal and Nkx2.1-expressing inhibitory cells. Using optogenetic activation of Nkx2.1 interneurons in slices of Nkx2.1Cre/wt;Tsc1f/wt mice, we found a decrease in synaptic inhibition of pyramidal cells. Chronic, but not acute treatment, with the mTORC1 inhibitor rapamycin reversed the impairment in synaptic inhibition.
Our results indicate that Tsc1 haploinsufficiency in MGE-derived inhibitory cells upregulates mTORC1 activity in these interneurons, reduces their synaptic inhibition of pyramidal cells, and alters contextual fear discrimination and spatial working memory. Thus, selective dysregulation of mTORC1 function in Nkx2.1-expressing inhibitory cells appears sufficient to impair synaptic inhibition and contributes to cognitive deficits in the Tsc1 mouse model of TSC.
Mutations in TSC1 or TSC2 genes cause tuberous sclerosis complex (TSC), a disorder associated with epilepsy, autism, and intellectual disability [1, 2]. TSC1 and TSC2 are repressors of the mechanistic target of rapamycin complex 1 (mTORC1), a signaling pathway crucial in the control of neuronal protein synthesis [3, 4]. Thus, alteration in mTORC1-mediated mRNA translation is a cardinal feature of TSC [4, 5]. Given the constellation of symptoms in TSC, molecular dysfunctions in specific brain circuits are likely responsible for these various behavioral changes [5,6,7].
Consistent with impairments in cognitive function in children with TSC , deficiency in hippocampus-dependent cognitive tasks is present in TSC animal models. Mice with heterozygous mutations in Tsc1 have deficits in hippocampus-dependent contextual fear and spatial learning, in the absence of cerebral pathology . Mice with heterozygous mutations in Tsc2 have impairments in hippocampus-dependent spatial reference and working memory , as well as contextual fear discrimination [9, 10]. These learning and memory deficits are associated with impairments in hippocampal synaptic plasticity. Heterozygous Tsc2 mice have an abnormally low threshold for induction of late long-term potentiation (LTP) , as well as deficits in mGluR long-term depression (LTD) . In the heterozygous Eker rat (Tsc2+/-), both LTP and LTD are impaired . Finally, mGluR LTD is impaired also after postnatal deletion of Tsc1 in mouse CA1 hippocampus in vivo  and in mice with conditional heterozygous Tsc1 knockout in forebrain excitatory neurons .
TSC, as other autism spectrum disorders (ASD), is also associated with an imbalance in excitation/inhibition [6, 14]. Hippocampal circuits are composed of excitatory projection cells and local inhibitory interneurons . Deletion of Tsc1 in CA1 hippocampal neurons using adeno-associated virus (AAV) delivery of Cre recombinase in mice with conditional floxed Tsc1 (Tsc1fl/fl) enhances excitatory synaptic transmission [12, 16]. Interestingly, with sparse Cre expression in a small number of hippocampal neurons, excitatory synaptic transmission is intact but inhibitory synaptic transmission is reduced . Hippocampal inhibitory interneurons are highly heterogenous, and specific cell types are associated with different inhibitory functions . How specific interneurons are affected in TSC to result in impairments of inhibition of principal cells remains largely unknown.
Hippocampal inhibitory interneurons, like their neocortical counterparts, are distinguished by their developmental origin from the medial ganglionic eminence (MGE) or caudal ganglionic eminence (CGE) [15, 17]. Hippocampal MGE-derived interneurons express the homeobox transcription factor Nkx2.1 and include somatostatin (SOM) and parvalbumin (PV) interneurons, as well as nitric oxide synthase (nNOS) expressing ivy and neurogliaform cells [15, 18]. Thus, our goal was to investigate how conditional heterozygous knockout of Tsc1 in MGE-derived interneurons (Nkx2.1cre/wt;Tsc1f/wt mice) affects hippocampal excitatory and inhibitory cell function, as well as hippocampus-dependent behaviors. We found that Tsc1 haploinsufficiency in Nkx2.1 cells enhanced mTORC1 activity in hippocampal SOM and PV interneurons. At the behavioral level, Nkx2.1Cre/wt;Tsc1f/wt mice showed impairments in contextual fear discrimination and spatial working memory. At the synaptic level, general miniature excitatory and inhibitory synaptic transmission were intact in pyramidal and Nkx2.1 inhibitory cells of Nkx2.1Cre/wt;Tsc1f/wt mice. However, using optogenetics, we found a decrease in synaptic inhibition of pyramidal cells by Nkx2.1 interneurons, which was rescued by treatment with the mTORC1 inhibitor rapamycin. Taken together, our results establish a link between upregulated mTORC1 signaling in Nkx2.1 interneurons and reduction of their synaptic inhibition of pyramidal cells, and hippocampus-dependent cognitive impairments in mouse, suggesting a possible role of dysregulated mTORC1-mediated translation and synaptic dysfunction in inhibitory cells in TSC.
Experiments were carried out on mice (8–11-week-old males for behavioral experiments; 6–8-week-old males and females for electrophysiology). Mice were housed 2–5 per cage and given ad libitum access to food and water, in temperature (~ 21 °C) and humidity (~ 55%) controlled rooms with a normal 12-h light/dark cycle. All procedures were approved by the Université de Montréal Animal Care Committee (Comité de déontologie de l’expérimentation sur les animaux, CDEA) and followed the guidelines of the Canadian Council on Animal Care.
Transgenic mice lines
Conditional floxed Tsc1 heterozygous knockout mice were generated in MGE-derived interneurons (Nkx2.1-Cre mice) by crossing first wild-type males (Nkx2.1wt/wt) with heterozygous Nkx2.1Cre/wt females (The Jackson Laboratory, JAX# 008661) to minimize germline recombination. Then, heterozygous Nkx2.1Cre/wt mice were crossed with homozygous Tsc1f/f mice (JAX#005680)  to generate Nkx2.1cre/wt;Tsc1f/wt or control (Nkx2.1wt/wt;Tsc1f/wt) littermates. In experiments with injection of AAV-based constructs (AAV2/9-EF1a-DIO-EYFP [Addgene #27056] and AAV9-EF1a-DIO-hChR2(H134R)-EYFP [Addgene #20298]), heterozygous Nkx2.1Cre/wt mice served as the control. Although some germline recombination has been observed by others using Nkx2.1 Cre driver mice , we did not observe germline recombination in any of our experiments using EYFP reporters (n = 53 Nkx2.1Cre/wt;Tsc1wt/wt mice and 57 Nkx2.1Cre/wt;Tsc1f/wt mice).
Somatostatin and parvalbumin immunofluorescence
Mice (6–10 weeks old) were deeply anesthetized with sodium pentobarbital (MTC Pharmaceuticals, Cambridge, Ontario, Canada), perfused transcardially first with ice-cold 0.1 M phosphate buffer and then with 4% para-formaldehyde (PFA) in 0.1 M phosphate buffer. The post-fixed brains were cryoprotected in 30% sucrose, and the coronal brain sections (50-μm thick) were obtained using a freezing microtome (Leica SM200R, Germany). Sections were permeabilized with 0.3–0.5% Triton X-100 in 0.1 M phosphate buffer (15 min), and unspecific binding was blocked with 10% normal goat serum in 0.1% Triton X-100 and 0.1 M phosphate buffer (1 h). Sections were incubated overnight at 4 °C with rabbit polyclonal somatostatin 28 antibodies (1/1000; Abcam; Toronto, Ontario, Canada), or at room temperature with mouse monoclonal parvalbumin antibody (1/5000; Millipore; Etobicoke, Ontario, Canada), and subsequently at room temperature with Alexa Fluor® 594-conjugated goat anti-rabbit IgGs (1/500; 90 min; Jackson Immunoresearch Laboratories; West Grove, PA) or Rhodamine-Red™-X-conjugated goat anti-mouse IgG1 (1/200; 90 min; Jackson Immunoresearch Labs). Sections were mounted in ProLong® Gold (Life technologies) and examined using a Nikon microscope (Nikon Eclipse E600; Nikon, Japan) equipped with epifluorescence. Images were acquired with the Simple PCI software (CImaging Systems, Compix Inc., PA).
The number and soma size of somatostatin and parvalbumin-positive cells in CA1 hippocampus were measured in control and transgenic mice. Somatostatin and parvalbumin immunoreactive cell counts and soma size were obtained, in strata oriens and pyramidale, respectively, from images (typically 4–8 fields of views were analyzed per animal and measures averaged per animal) using Photoshop software. Soma size was measured from the contour of immunofluorescent cells using ImageJ software.
S6 phosphorylation immunofluorescence
Brain sections obtained as described above were processed for combined parvalbumin or somatostatin and phospho-S6S235/236 ribosomal protein immunofluorescence. For parvalbumin, sections were incubated as described above, and subsequently with rabbit polyclonal phospho-S6 antibody (1/400; 48 h; 4 °C; anti-phospho-S6S235/236; Cell Signaling, Beverly, MA) and with Alexa Fluor® 594-conjugated goat anti-rabbit IgGs (1/500; 90 min; room temperature). For somatostatin, sections were incubated 48 h at 4 °C with rabbit monoclonal antibody Alexa Fluor® 594-conjugated phospho-S6S235/236 antibody (1/100; Cell Signaling) followed by goat anti-rabbit IgG monovalent Fab fragment (1/500; 120 min at room temperature; Jackson ImmunoResearch Labs). Sections were next incubated with rabbit polyclonal somatostatin antibody (1/1000; 24 h, room temperature) followed by FITC-conjugated goat anti-rabbit IgGs (1/500; 90 min; room temperature; Jackson Immunoresearch Labs). Images were acquired using a confocal microscope (LSM510; Carl Zeiss, Oberkochen, Germany) at excitation 488 and 543 nm. Images from parvalbumin or somatostatin immunofluorescence in wild-type and Tsc1 mice were acquired using the exact same parameters based on wild-type immunofluorescence. Phospho-S6 cell fluorescence was quantified using ImageJ software (National Institute of Health; https://github.com/imagej/imagej1) by comparing integrated density in cells corrected for background fluorescence. Cell fluorescence was measured typically in 24–32 fields of view per animal, and averaged per animal.
Total hippocampus (10-week-old mice) were collected and protein extracted using ice-cold radioimmunoprecipitation assay buffer containing: 50 mM Tris pH 7.4, 150 mM NaCl, 2 mM EDTA, 1% Triton X-100, 0.5% sodium desoxycholate, 0.1% sodium dodecyl sulfate, 200 μM NaF, 200 μM Na3VO4, and protease inhibitor (Cocktail inhibitor set I; Calbiochem, Gibbstown, NJ) (20 min, 4 °C). Lysates were centrifuged at 19 000g (20 min, 4 °C) and protein concentration from the supernatant was determined according to the bicinchoninic acid method using bovine serum albumin as the standard (Pierce, Rockford, IL). Thirty micrograms of proteins were separated by 12% sodium dodecyl sulfate-polyacrylamide gel electrophoresis and transferred onto polyvinilidene fluoride membrane. The membranes were blocked with 5% non-fat skin milk dissolved in Tris-buffered saline-0.1% Tween 20 pH 7.4 (1 h30, room temperature) and incubated with rabbit polyclonal anti-phospho-S6S235/236 (1/1000; Cell Signaling) overnight at 4 °C. Membranes were then incubated with horseradish peroxidase-conjugated anti-rabbit IgGs (1/20000; Jackson ImmunoResearch Labs) for 1 h and 30 min at room temperature. Immunoreactive bands were detected by enhanced chemiluminescence plus (Perkin Elmer, Waltham, MA). Membranes were next stripped with buffer containing 0.2 M glycine pH 2.2, 0.1% sodium dodecyl sulfate and re-probed with antibodies detecting level of total S6 (1/2000; Cell Signaling) and/or tubulin (1/1000; Cell Signaling) overnight at 4 °C. All immunoreactive bands were scanned with a desktop scanner and quantified using Quantity One software (BioRAD, Hercules, CA).
To label Nkx2.1-expressing interneurons, 3–4-week-old Nkx2.1Cre/wt and Nkx2.1Cre/wt;Tsc1fl/wt mice were injected in the CA1 hippocampus with AAV2/9-EF1a-DIO-EYFP. Viral particles (0.8 μL; stock solution of at least 10E12 GC/mL; #AV2/9-27056P; Penn vector core; Philadelphia, PA) were injected (0.1 μL/min) at stereotaxic coordinates: (from bregma) antero-posterior − 2.46 mm, lateral ± 1.75 mm, and dorso-ventral − 1.5 mm.
Mice (6–8 weeks old) were anesthetized with isoflurane, and the brain was removed and placed in ice-cold oxygenated (95% O2/5% CO2) cutting solution containing (in mM) 87 NaCl, 2.5 KCl, 1.25 NaH2PO4, 7 MgSO4, 25 NaHCO3, 25 d-glucose, 75 sucrose, 1 ascorbic acid, 3 pyruvic acid, and 0.5 CaCl2. Transverse hippocampal slices (300-μm thickness) were prepared using a Vibratome (Leica; VT1000S) and transferred to oxygenated artificial cerebrospinal fluid (ACSF) containing (in mM) 124 NaCl, 5 KCl, 1.25 NaH2PO4, 2 MgSO4, 26 NaHCO3, 10 dextrose, and 2 CaCl2 (pH = 7.3–7.4; 295–300 mOsmol/L) at room temperature. After a recovery period of at least 45 min, individual slices were transferred to a submersion recording chamber, perfused at 2.5 ml/min with ACSF at 32 °C, and mounted on an upright microscope (Zeiss Axioskop, Toronto, Canada; or Olympus BX50WI, Toronto, Canada) equipped with a long-range water immersion objective (× 40) with Hoffmann (Modulation Optics, Greenvale, NY) or Nomarski optics, epifluorescence, and an infrared CCD camera.
Whole-cell recordings were obtained from CA1 pyramidal neurons or EYFP-positive interneurons under visual guidance using patch pipettes (3–5 MΩ) pulled from borosilicate glass capillaries (World Precision Instruments, Sarasota, USA). Signals were recorded using a Multiclamp 700A amplifier (Molecular Devices) and digitized using Digidata 1440A and pClamp10 software (Molecular Devices). Signals were low-pass filtered at 2 kHz, digitized at 20 kHz, and stored on a PC. Series resistance (15–25 MΩ) was regularly monitored during experiments, and only cells with stable series resistance (changes < 20%) and stable holding current were included.
For current-clamp recordings, the intracellular recording solution contained (in mM) 120 KMeSO3, 0.5 EGTA, 10 KCl, 10 HEPES, 4 Mg-ATP, 0.3 GTP-tris, and 10 Di-Na phosphocreatine. Membrane properties were recorded as previously  in current clamp at a membrane potential (Vm) of − 60 mV in ACSF containing the NMDA receptor blocker DL-2-amino-5-phosphonovaleric acid (AP5 50 μM; Tocris Biosciences), the non-NMDA receptor blocker 6,7-dinitroquinoxaline-2,3-dione (DNQX 25 μM; Tocris Biosciences), and the GABAA receptor blocker GABAzine (10 μM; Abcam, Canada).
For voltage-clamp recordings of miniature inhibitory postsynaptic currents (mIPSCs) and light-evoked IPSCs in pyramidal cells, the recording solution contained (in mM) 130 CsCl, 10 HEPES, 0.5 EGTA, 2 MgCl2, 2 ATP-tris, 0.4 GTP-tris, 5 Di-Na phosphocreatine, and 5 QX-314. Miniature IPSCs were recorded at a Vm of − 60 mV in the presence of the sodium channel blocker tetrodotoxin (TTX 0.5 μM; Alomone Labs), AP5, and DNQX. Light-evoked IPSCs were recorded at a Vm of − 60 mV in the presence of AP5 and DNQX. For voltage-clamp recordings of miniature excitatory postsynaptic currents (mEPSCs) in pyramidal cells, the intracellular solution contained (in mM) 130 CsMeSO3, 0.2 EGTA, 8 CsCl, 1 MgCl2, 10 HEPES, 3 Mg-ATP, 0.6 GTP-tris, 10 phosphocreatine, and 5 QX-314. Miniature EPSCs were recorded in the presence of TTX and GABAzine.
For EYFP-positive interneurons, voltage-clamp recordings of mEPSCs and mIPSCs were obtained in the same cells using intracellular solution containing (in mM) 130 CsMeSO3, 0.2 EGTA, 8 CsCl, 1 MgCl2, 10 HEPES, 3 Mg-ATP, 0.6 GTP-tris, 10 phosphocreatine, and 5 QX-314, and ACSF containing TTX and AP5. Miniature EPSCs were recorded at Vm of − 70 mV and mIPSCs at Vm of 0 mV. Miniature E/IPSCs were analyzed using Mini Analysis 6.0.3 software (Synaptosoft Inc., Decatur, GA, USA). For experiments with mEPSCs and mIPSCs recorded in separate cells, the minimum number of miniature events sampled were 200 and 300, respectively, per cell. For experiments with mE/IPSCs recorded in the same cell, a minimum of 220 events was sampled for each. For each cell, mE/IPSC data were binned to avoid oversampling some neurons.
To optogenetically activate Nkx2.1-expressing interneurons with channelrhodopsin (ChR2), 3–4-week-old Nkx2.1Cre/wt and Nkx2.1Cre/wt;Tsc1fl/wt mice were injected in the CA1 hippocampus with AAV9-EF1a-DIO-hChR2(H134R)-EYFP (Addgene #20298). Viral particles (0.8 μL; stock solution of at least 10E12 GC/mL; #AV9-20298P; Penn vector core; Philadelphia, PA) were injected (0.1 μL/min) at same coordinates as described above. ChR2 was activated via an optical fiber (1-mm diameter) coupled to a 470-nm custom-made LED system positioned above the slice . The measured LED power was 26 mW at the end of the light guide. To determine input-output function of light-evoked IPSCs, series of light flashes of different duration (0.4–1.8 ms) were given at 30 s intervals and a single cell was recorded per slice.
Given the inherent variability in optogenetic experiments due to differences in viral transduction and ChR2 expression levels, injection site, and virus batch, the following series of precautions were taken to minimize optogenetic response variability. Only slices showing similar strong EYFP expression in CA1 were included. Specificity and efficacy of virus transduction were verified for each animal according to the procedure described for somatostatin and parvalbumin immunofluorescence. Briefly, after recordings, slices were fixed with 4% PFA (4 °C, overnight) and mounted on glass slides. EYFP expression was examined, and images taken, as described for somatostatin and parvalbumin immunofluorescence. In some experiments, slices were re-sectioned (50 μm) for better resolution. For each series of experiments (genotype control vs mutant; acute rapamycin; chronic rapamycin), animal virus injection and slice experiments were always interleaved in control and mutant animals, as well as vehicle or drug treatment, with the experimenter blind to genotype and drug treatment until after data analysis. The same batch of AAV particles was used for a given series of experiments, except for the acute rapamycin experiments (two batches of AAV).
The stock solution of rapamycin (50 mg/ml in DMSO; LC Laboratories; Woburn, MA) was prepared and stored at − 20 °C. For rapamycin bath applications, slices were incubated in ACSF containing rapamycin (200 nM) or vehicle (DMSO) at least 30 min prior to recording, as well as during the recordings. For rapamycin chronic administration, 2 days after AAV-ChR2-EYFP injection, mice received an intraperitoneal injection (50 μl) of rapamycin (5 mg/kg) or vehicle (100% DMSO; 2 ml/kg) for 5 consecutive days. Solutions were prepared immediately before injection. Slices were prepared 24 h after the last injection.
Mice were handled daily for 3 days prior to behavioral testing. Behavioral experiments were performed between 9:00 am–3:00 pm. The experimenter was blind to the genotype during testing and analysis.
For experiments with animal tracking, mice were video-tracked at 25 frames per second and their movements analyzed using a video-tracking system (Smart 3.0, PanLab, Harvard Apparatus), as previously . Before experiments, the animal/image background contrast detection threshold was calibrated by visual inspection.
Open-field tests were conducted as previously . Each mouse was allowed to freely explore a circular open field (60 cm diameter, 25 cm height) for 5 min. Data were analyzed using a custom-made zone pattern (Smart 3.0, Panlab) consisting of three concentric circles (20, 40, and 60 cm diameter, respectively) defining central, intermediate, and peripheral regions. Anxiety measure was obtained from the time spent in the center versus the periphery. Locomotor activity was assessed by measuring the total distance traveled.
Contextual fear conditioning
Contextual fear conditioning was conducted as previously . Mice were trained in conditioning chambers (17.8 cm × 17.8 cm × 30.5 cm) that were housed in sound- and light-isolated cubicles (Coulbourn Instruments, MA). Chambers contained a stainless-steel grid floor, overhead LED lighting and camera, and were supplied with background noise (60 dB) by an air extractor fan. The experimental protocol was based on Ruediger and coworkers  with slight modifications. The training context was rectangular with transparent walls and was cleaned with 1% acetic acid before and after each trial. A novel context was designed to assess contextual discrimination. This context had a circular shape, opaque black and reflective walls, and Plexiglas floor and was cleaned with 70% ethanol before and after each trial. This context was considered novel and distinct to the training context. Freezing was defined as the absence of somatic motility, except for respiratory movements, and analyzed using FreezeFrame (Coulbourn Instruments). Once placed in the conditioning chamber, mice were allowed to freely explore for 2.5 min and then received 5 presentations of unconditioned stimuli (1 s foot shock, 0.8 mA, 30 s interval). To test for long-term contextual fear memory, mice were returned to the training context during a test period of 2.5 min at 24 h after conditioning. To test for contextual discrimination after fear conditioning, a within-subject design was used. On the test day, 5 h after the test in the training context, mice were exposed to the novel context and freezing was assessed during 2.5 min. A discrimination ratio was calculated as the amount of freezing in (training context)/(training context + novel context) . A ratio of 1 indicates that mice were able to discriminate the contexts perfectly, and a ratio of 0.5 means that they were unable to discriminate.
Barnes maze task
The Barnes maze test was used to assess hippocampus-dependent spatial learning, as previously . The experimental protocol was based on Sunyer and coworkers  with slight modifications. In the Barnes maze, mice are trained to use spatial clues to find a small dark escape chamber under the platform called the “escape box.” The maze consists of a gray circular platform, 90 cm in diameter with 20 evenly spaced holes at the edges (PanLab, Spain). The platform is elevated 1 m from the ground to prevent animals from jumping off. All but one of the holes are false-bottomed, while one leads to an escape box. The escape box is retained at the same position relative to the room, while the platform is rotated with each trial to discourage the use of the intra-maze odor cues. In addition, the platform, the starting chamber, and the escape box were thoroughly cleaned (Versaclean 10 %) between every single trial to prevent any possible scent trails. The assignment of escape cage location was balanced among experimental groups. Three reinforcements were used to motivate mice to locate and enter the escape box: ceiling bright lights, the open space of the apparatus itself, and an aversive pulsed noise (76 dB) by a buzzer (TM50, Korg). Before the proper training, animals were first acclimated to the maze in a cylindrical black start chamber placed in the center of the maze for 30 s. Then, mice were allowed to explore the maze for 3 min; the buzzer went on after 30 s. If the mouse failed to find the escape box by the end of the 3 min period, it was gently guided to it. The mouse was left in the escape box for 2 min (buzzer off) or gently guided back if it decided to leave within the 2-min period. During this familiarization trial, the shredded paper was placed within the escape box. Following the adaptation period, mice were trained in 4 sessions daily with an inter-trial interval of 15 min for 4 days (blocks). During the training, mice were left 10 s only in the starting chamber, the buzzer went on right after and mice were left 1 min only in the escape box after each trial (no paper inside, buzzer off). Mice were video-tracked and the number of errors, the latency, and the distance traveled before finding the escape box were collected using Smart 3.0 (PanLab). On the sixth day, the animals were exposed to a probe trial in which the escape box was closed. Mice were allowed to explore the maze for 90 s. The number of errors, the latency, and the distance traveled before the first reaching of the target (primary search) were collected. During the total search (90 s), the time spent in the quadrants (target, left, right, and opposite, excluding a 15-cm-diameter central zone) and the number of visits for each hole were collected. To test for reversal learning, mice were trained on the seventh and eighth day for another series of 4 daily sessions with the escape box moved to a new target (180o position from the previous goal) and were exposed on the ninth day to a memory probe trial.
Data were analyzed using OriginPro (OriginLab) software and are expressed as mean ± S.E.M. Two-group comparisons were carried out using Student’s t test. Data were tested for normality using Shapiro-Wilk test. For groups with unequal variance, Welch t test was used. Multiple comparisons were made using two-way or three-way repeated measures ANOVA with Bonferroni post hoc comparisons. Cumulative probability distributions were tested for significance with Kolmogorov-Smirnov test. Friedman ANOVA and Mann-Whitney tests were used for nonparametric tests. In figures, asterisks denote statistical significance as calculated by the specified statistical tests (*p < 0.05; **p < 0.01; ***p < 0.001; ns indicates not significant).
Conditional heterozygous knockout of Tsc1 causes cell-specific increase in mTORC1 activity
To examine the effects of conditional heterozygous knockout of Tsc1 in MGE-derived inhibitory cells, we generated a conditional knockout of Tsc1 in Nkx2.1-expressing inhibitory cells by crossing Tsc1f/f mice with Nkx2.1Cre/wt mice.
Since TSC1 is a repressor of mTORC1, we first verified that mTORC1 is affected by the conditional Tsc1 deletion by assessing phosphorylation of ribosomal protein S6S235/236 (p-S6), a downstream effector of mTORC1 signaling, in total hippocampal cells or only inhibitory cells. We assayed p-S6 in total hippocampal cells by western blot assays of hippocampal lysates. Since Nkx2.1-expressing interneurons consist of parvalbumin (PV) and somatostatin (SOM) expressing interneurons , we assayed p-S6 immunofluorescence in PV and SOM immunopositive inhibitory interneurons.
In mice with Tsc1 knockdown in inhibitory cells, mTORC1 signaling was unaffected in total hippocampal cells, as indicated by unchanged hippocampal p-S6 levels in Western blots from Nkx2.1Cre/wt;Tsc1f/wt mutant relative to control Nkx2.1wt/wt;Tsc1f/wt mice (Fig. 1a). However, p-S6 immunofluorescence level was elevated in SOM and PV cells from Nkx2.1Cre/wt;Tsc1f/wt mutants relative to control mice (SOM cells = 269 cells, 142 fields of view in 6 mutant mice versus 206 cells, 105 fields of view in 4 control mice; PV cells = 465 cells, 184 fields of view in 6 mutant mice versus 274 cells, 104 fields of view in 4 control mice; Fig. 1b, c). Thus, mTORC1 activity is selectively upregulated in inhibitory cells, and not in total hippocampal cells, in Nkx2.1Cre/wt;Tsc1f/wt mutant mice.
TSC signaling regulates cell size, morphology, and function . Previous work indicated that conditional homozygous, but not heterozygous, deletion of Tsc1 in cerebellum resulted in decreases in Purkinje cell number and increases in their soma size of . Therefore, we examined the effect of Tsc1 heterozygous knockout on inhibitory cell number and soma size. The cell number and soma area of CA1 immunopositive PV and SOM interneurons were unchanged in Nkx2.1Cre/wt;Tsc1f/wt mice relative to control mice (SOM cell numbers = 407 cells, 34 fields of view in 6 mutant mice versus 240 cells, 21 fields of view in 4 control mice; PV cell numbers = 583 cells, 31 fields of view in 6 mutant mice versus 362 cells, 23 fields of view in 4 control mice; SOM cell soma size = 98 cells, 18 fields of view in 3 mutant mice versus 69 cells, 16 fields of view in 3 control mice; PV cell soma size = 44 cells, 14 fields of view in 3 mutant mice versus 51 cells, 14 fields of view in 3 control mice; Fig. 1d–f). Thus, survival and soma size of Nkx2.1-expressing interneurons appear normal in CA1 hippocampus after the conditional heterozygous loss of Tsc1.
Conditional Tsc1 knockout in inhibitory cells impairs contextual fear memory discrimination
Mice with global heterozygous deletion of Tsc1 or Tsc2 show cognitive deficits. Tsc2+/- mice exhibit impairments in contextual fear discrimination . Tsc1+/- mice display a deficit in contextual fear learning . Thus, we next examined if mice with a conditional heterozygous Tsc1 knockout in Nkx2.1 inhibitory cells show deficits in contextual fear conditioning and discrimination.
First, we verified that locomotion and anxiety levels were unaffected in mutant mice using the open-field test (Fig. 2a). Nkx2.1Cre/wt;Tsc1f/wt mutant mice spent more time in the periphery than the center, like control mice. In addition, total distance traveled was similar for Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice. Thus, mice with conditional heterozygous Tsc1 knockout in Nkx2.1 inhibitory cells display a normal anxiety level and locomotion.
Next, we examined the effects of conditional heterozygous Tsc1 knockout on contextual fear memory. Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice froze similarly in response to foot shocks during conditioning, indicating normal sensorimotor gating (Fig. 2b). In the long-term memory test, Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice showed similar freezing levels, indicating intact long-term contextual fear memory (Fig. 2c). When exposed to the novel context, Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice showed less freezing than in the training context, but the discrimination ratio was reduced in the Nkx2.1Cre/wt;Tsc1f/wt mutant mice relative to control, indicating an impairment in contextual fear memory discrimination (Fig. 2d). Thus, mice with conditional heterozygous Tsc1 knockout in inhibitory cells show deficits in contextual memory discrimination.
Conditional Tsc1 knockout in inhibitory cells impairs long-term spatial working memory
Mice with global heterozygous deletion of Tsc1  or Tsc2  also show hippocampus-dependent spatial learning deficits. Thus, we next examined if mice with a conditional heterozygous Tsc1 knockout in Nkx2.1 inhibitory cells show deficits in spatial learning.

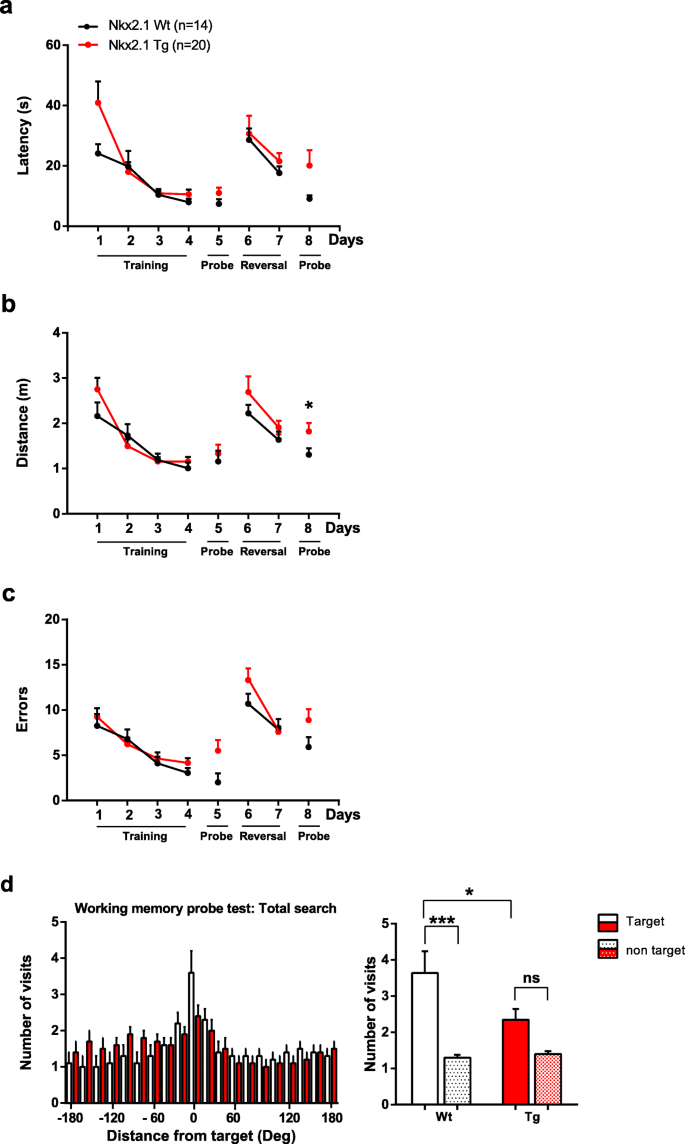

We evaluated spatial reference and working memory in Nkx2.1Cre/wt;Tsc1f/wt mice using the Barnes maze, a hippocampus-dependent spatial learning and memory task (Fig. 3). Mice were trained for 4 consecutive days (4 trials per day) and tested on day 5 for long-term reference memory. Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice showed similar decreases in a number of errors, latency, and traveled distance to reach the goal, indicating unimpaired acquisition (Fig. 3a–c). In the memory probe test, Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice displayed a similar number of errors, latency, and traveled distance in the primary search for the target (Fig. 3a–c), indicating unaffected long-term spatial reference memory. Next, mice were trained on days 6 and 7 on a reversal learning task with the new target rotated 180o, requiring the mice to learn a new location of the target hole. Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice showed similar decreases in a number of errors, latency, and traveled distance to reach the goal, indicating unimpaired acquisition in the reversal learning task (Fig. 3a–c). On day 8, mice were tested on the working memory probe test. In the primary search, Nkx2.1Cre/wt;Tsc1f/wt mutant mice showed a tendency for increases in a number of errors and latency, and a significant increase in traveled distance to reach the goal relative to control mice (Fig. 3a–c). In addition, during the total search, Nkx2.1Cre/wt;Tsc1f/wt mutant mice showed a reduction in the time spent in the target quadrant relative to control mice, suggesting an impairment in spatial working memory (Fig. 3d). Also, Nkx2.1Cre/wt;Tsc1f/wt mutant mice showed a reduction in the number of visits to the target relative to control mice and did not display a preference for visits to the target vs non-targets, indicating a deficit in spatial memory precision (Fig. 3e–f). Our results suggest that Nkx2.1Cre/wt;Tsc1f/wt mutant mice may have intact long-term spatial reference memory and impaired long-term spatial working memory.
Conditional Tsc1 knockout in inhibitory cells impairs synaptic inhibition by Nkx2.1 interneurons
Tsc1 knockout by local delivery of Cre in the hippocampus of Tsc1f/f mice impairs synaptic inhibition  and enhances synaptic excitation . Thus, we next examined the effects of conditional Tsc1 knockout in inhibitory cells on hippocampal synaptic function. Whole-cell patch-clamp recordings were obtained from CA1 pyramidal cells or from Nkx2.1-expressing interneurons in acute slices from Nkx2.1Cre/wt;Tsc1f/wt mutant and Nkx2.1Cre/wt control mice injected with AAV-DIO-EYFP. We confirmed the conditional expression of EYFP by showing the absence of EYFP after injection in control Tsc1f/f mice and efficient expression in Nkx2.1Cre/wt mice (Fig. 4e–f).
First, we characterized the basic membrane properties of CA1 EYFP-expressing Nkx2.1 interneurons and pyramidal cells. Action potential threshold, half-width and amplitude, as well as resting membrane potential, and afterhyperpolarization amplitude, were unchanged in Nkx2.1 interneurons and pyramidal cells of Nkx2.1Cre/wt;Tsc1f/wt mutant mice relative to control (Table 1), indicating intact general properties of these cells in mutant mice. Although we did not perform extensive cell counts, the number of EYFP-expressing interneurons appeared similar in Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice.
Next, we determined if conditional Tsc1 knockout in inhibitory cells affected miniature excitatory and inhibitory synaptic transmission in pyramidal cells. Miniature excitatory postsynaptic currents (mEPSC) amplitude and frequency from CA1 pyramidal cells were similar in Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice (Fig. 4a, b). Similarly, miniature inhibitory postsynaptic currents (mIPSC) amplitude and frequency were unchanged in CA1 pyramidal cells of Nkx2.1Cre/wt;Tsc1f/wt mutant relative to control mice (Fig. 4c, d). These results indicate that conditional deletion of Tsc1 in Nkx2.1 interneurons does not impair general spontaneous miniature excitatory and inhibitory transmission in pyramidal cells.
Next, we examined if the miniature excitatory and inhibitory synaptic transmission were affected in Nkx2.1 interneurons. Nkx2.1 interneurons are comprised of multiple types of interneurons; thus, we sampled preferentially Nkx2.1 interneurons located at the oriens-alveus border region and in/around stratum pyramidale (approximately 40–60% in each group) to attempt to target equally SOM and PV interneurons. Amplitude and frequency of both mEPSCs and mIPSCs were unchanged in EYFP-expressing Nkx2.1 interneurons from Nkx2.1Cre/wt;Tsc1f/wt mutant relative to control mice (Fig. 4e–j). Thus, general spontaneous miniature excitatory and inhibitory transmission were also unaffected in Nkx2.1 interneurons after conditional deletion of Tsc1 in these cells.
Next, we sought to determine if conditional deletion of Tsc1 in Nkx2.1 interneurons could affect specifically their synaptic inhibition of pyramidal cells. To selectively activate inhibition by Nkx2.1 interneurons, we used Cre-dependent expression of ChR2 in hippocampal Nkx2.1 interneurons of Nkx2.1Cre/wt;Tsc1f/wt mutant and Nkx2.1Cre/wt control mice, and optogenetic stimulation during whole-cell recordings from pyramidal cells in brain slices (Fig. 5a). Only slices with significant levels of EYFP expression were selected for experiments, and no differences were noted in EYFP expression in Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice (for example, Fig. 5b). Brief pulses of optogenetic stimulation evoked inhibitory postsynaptic currents (IPSCs) in pyramidal cells of both Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice. Small increments in light pulse duration (0.4–1.2 ms) were used to examine the input-output function of optogenetically evoked IPSCs in pyramidal cells (Fig. 5c, d). Input/output functions showed that amplitude of evoked IPSCs was reduced in Nkx2.1Cre/wt;Tsc1f/wt mutant compared to control mice (Fig. 5c, d), indicating an impairment of synaptic inhibition of pyramidal cells by Nkx2.1 interneurons.
To verify that the deficit in synaptic inhibition was not due to an impairment of optogenetic activation of interneurons, we obtained whole-cell recordings from ChR2- and EYFP-expressing Nkx2.1 interneurons and recorded their responses to optogenetic stimulation (Fig. 5e). The input-output functions of evoked firing of Nkx2.1 interneurons were similar in Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice (Fig. 5f, g), indicating similar activation of interneurons by optogenetic stimulation in mutant and control mice.
Together, these results indicate that conditional deletion of Tsc1 in Nkx2.1 cells does not affect general miniature excitatory and inhibitory synaptic transmission in either pyramidal or Nkx2.1 interneurons, but impairs in a cell-specific manner synaptic inhibition of pyramidal cells by Nkx2.1 interneurons.
Rapamycin treatment reverses deficits in synaptic inhibition
Impaired synaptic inhibition in hippocampal neurons with Tsc1 knockout is rescued by mTORC1 inhibition . Thus, we examined whether the deficits in inhibition by Nkx2.1 cells after conditional deletion of Tsc1 are sensitive to treatment with the mTORC1 inhibitor rapamycin.

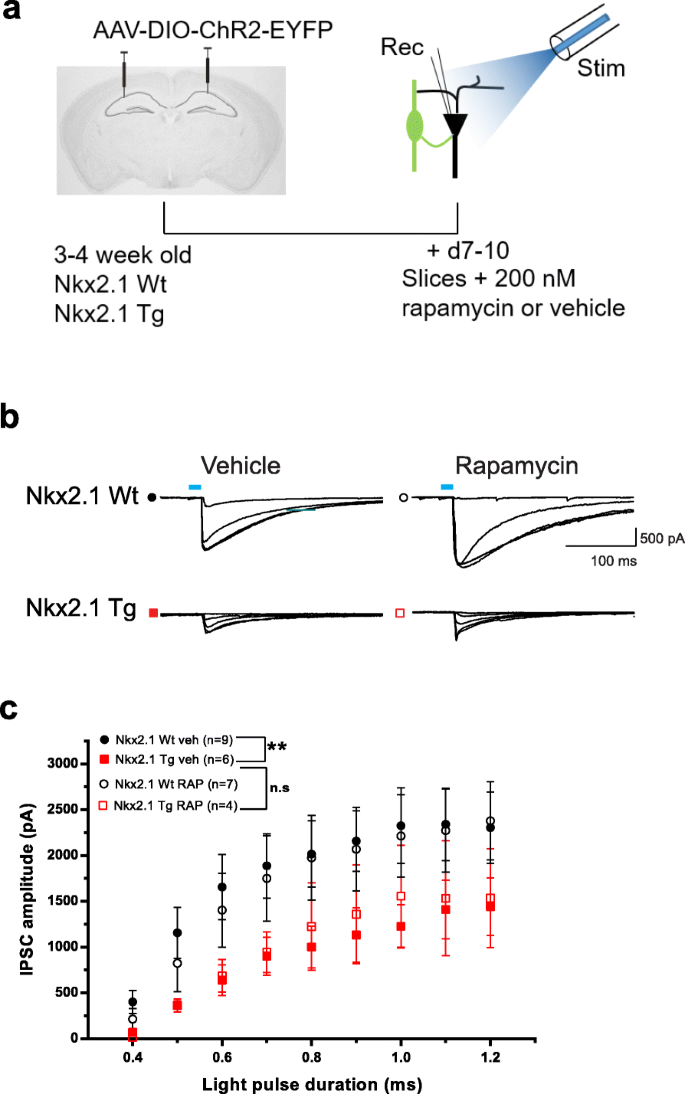

First, we investigated the effects of acute treatment of slices with rapamycin on synaptic inhibition by Nkx2.1 interneurons after Cre-dependent expression of ChR2 in hippocampal Nkx2.1 interneurons of Nkx2.1Cre/wt;Tsc1f/wt mutant and Nkx2.1Cre/wt control mice. Slices were treated with vehicle (DMSO) or 200 nM rapamycin for 30 min prior to and during recordings from pyramidal cells (Fig. 6a). Optogenetic stimulation of Nkx2.1 interneurons evoked IPSCs that were smaller in amplitude in pyramidal cells of vehicle-treated slices of Nkx2.1Cre/wt;Tsc1f/wt mutant compared to control mice (Fig. 6b,c), confirming the deficit of synaptic inhibition in mutant mice. Pyramidal cells that received the acute treatment with rapamycin showed a similar impairment in synaptic inhibition in Nkx2.1Cre/wt;Tsc1f/wt mutant mice compared to control mice (Fig. 6b, c). Thus, acute treatment with rapamycin did not reverse the deficit in synaptic inhibition in mutant mice.
Next, we examined the effect of chronic treatment of rapamycin. Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice received intraperitoneal injections of 5 mg/kg rapamycin (or vehicle) over 5 consecutive days (Fig. 7a). We verified the efficacy of rapamycin treatment using western blot analysis of S6 phosphorylation, a downstream effector of mTORC1, in wild-type control mice. S6 phosphorylation was reduced in hippocampal lysates from chronic rapamycin-treated mice compared to vehicle-treated mice (Fig. 7b), confirming inhibition of mTORC1 signaling. Next, we examined synaptic inhibition by Nkx2.1 interneurons in slices 24 h after chronic rapamycin treatment of Nkx2.1Cre/wt;Tsc1f/wt mutant and control mice. IPSCs evoked in pyramidal cells by optogenetic stimulation of Nkx2.1 interneurons from rapamycin-treated Nkx2.1Cre/wt;Tsc1f/wt mutant mice were similar to those of control mice and were increased relative to those of mutant mice that received vehicle treatment (Fig. 7c, d). Moreover, rapamycin treatment did not affect IPSCs in control mice compared to vehicle treatment (Fig. 7c, d). Thus, chronic treatment with rapamycin reversed the deficit in synaptic inhibition of pyramidal cells by Nkx2.1 interneurons in mutant mice, without affecting inhibition in control mice, suggesting that impaired inhibition was due to mTORC1 hyperactivation in interneurons of Nkx2.1Cre/wt;Tsc1f/wt mutant mice.
Our results uncover that conditional Tsc1 haploinsufficiency in a major subgroup of inhibitory cells, MGE-derived interneurons, affects hippocampal function in mice. Conditional heterozygous knockout of Tsc1 causes an inhibitory cell-specific increase in mTORC1 activity (Fig. 1), an impairment in contextual fear memory discrimination (Fig. 2) and long-term spatial working memory (Fig. 3), as well as a deficit in synaptic inhibition of pyramidal cells by Nkx2.1 interneurons (Fig. 5). Additionally, chronic treatment with the mTORC1 inhibitor rapamycin rescues the deficit in synaptic inhibition (Fig. 7). Thus, our findings establish a link between upregulated mTORC1 signaling in Nkx2.1 interneurons and reduction of their synaptic inhibition of pyramidal cells, and hippocampus-dependent cognitive impairments in mouse, suggesting a possible role of dysregulated mTORC1-mediated translation and synaptic dysfunction in inhibitory cells in TSC.
Our results indicate that in mice with conditional Tsc1 haploinsufficiency in Nkx2.1 cells, contextual fear learning is intact but contextual fear discrimination is impaired (Fig. 2), and, in addition, spatial learning and reference memory are intact but spatial working memory is deficient (Fig. 3). Interestingly, these changes partially replicate deficits reported in mice with global Tsc2+/- mutations: impairments in hippocampus-dependent working memory  and contextual fear discrimination [9, 10]. Thus, Tsc1 haploinsufficiency in Nkx2.1 inhibitory cells is sufficient to result in a subset of the hippocampus-related cognitive deficits observed in global Tsc mouse models. However, other reported deficits in contextual fear and spatial learning in global Tsc1+/- mice  or in spatial reference memory in global Tsc2+/- mice  were not observed in mice with conditional Tsc1 haploinsufficiency in Nkx2.1 cells. Thus, these learning impairments likely implicate hippocampal cell types other than Nkx2.1 interneurons.
Our findings shed some light on the mechanisms that might be involved in Nkx2.1 cells to result in the behavioral changes. We found that conditional Tsc1 haploinsufficiency in Nkx2.1 cells impaired synaptic inhibition of CA1 pyramidal cells by Nkx2.1 interneurons (Fig. 5). Interestingly, the deficit of synaptic inhibition is selective to the inhibition elicited by activation of Nkx2.1 cells, since spontaneous miniature synaptic inhibition of CA1 pyramidal cells and Nkx2.1 interneurons was intact (Fig. 4). These findings are consistent with the notion that spontaneous miniature synaptic inhibition in CA1 pyramidal cells arises from somatic and perisomatic inhibitory synapses from multiple types of interneurons [27,28,29], whereas optogenetically evoked synaptic inhibition is elicited by selective activation of Nkx2.1 cells. The deficit in synaptic inhibition by Nkx2.1 cells is also unlikely to be due to a loss of Nkx2.1 cells since we found that PV and SOM cell numbers were intact in mice with conditional Tsc1 haploinsufficiency (Fig. 1). Furthermore, we found that SOM and PV cell soma size was unchanged in mice with conditional Tsc1 haploinsufficiency (Fig. 1), consistent with the lack of morphological changes in hippocampal principal cells reported in heterozygous Tsc1+/- mice , but in contrast to the hypertrophied hippocampal neurons in mice with homozygous Tsc1 mutations . Although we did not carry out extensive quantifications, our observations of similar expression of EYFP and EYFP-tagged ChR2 in our whole-cell slice experiments in Wt and Tg mice (Figs. 4 and 5) are consistent with the intact cell numbers in mice with conditional Tsc1 haploinsufficiency. Finally, the basic membrane and firing properties (Table 1), as well as the excitatory and inhibitory synaptic inputs of Nkx2.1 cells (Fig. 4), were intact in mice with conditional Tsc1 haploinsufficiency. Thus, the effects of Tsc1 haploinsufficiency in Nkx2.1 cells appeared to affect most specifically their output synapses and not general cell function. Nkx2.1-expressing cells in the hippocampus consist of multiple interneuron subtypes: SOM and PV interneurons, as well as nitric oxide synthase (nNOS) expressing ivy and neurogliaform cells [15, 18]. Thus, given our findings of deficit of inhibition by Nkx2.1 cells, it will be important in future experiments to determine if the synaptic impairment is present in all, or only in certain, of these identified interneuron subtypes. In addition, the discrepancy between mIPSCs and optogenetic IPSCs might be due to biological reasons such as predominant impairment of mechanisms driving evoked versus spontaneous release, or compensation of synaptic inputs by non-MGE-derived interneuron populations. Nonetheless, our finding of efficient conditional postnatal Cre recombination in Nkx2.1 inhibitory cells (Figs. 4 and 5) provides a great tool for the understanding of Nkx2.1 expression and function of these interneurons in the hippocampus.
In our experiments, the amplitude of optogenetically evoked IPSCs showed variability across different series of experiments (for example, IPSCs in Wt Fig. 5d and Fig. 6c). Due to the inherent variability in optogenetic experiments, we took experimental precautions (see the “Methods” section) to minimize optogenetic response variability within each series of interleaved experiments (i.e., Figs. 5, 6, and 7). In addition, as a control for transfection efficiency during experiments, optogenetically evoked IPSCs were only recorded in slices of Wt and Tg mice with similar efficient EYFP expression verified by fluorescence microscopy (Fig. 5b). Moreover, we verified that optogenetic activation of Nkx2.1 cells was efficient and similar in Wt and Tg mice (Fig. 5f, g). Although the latter may not represent optogenetic activation of Nkx2.1 axon terminals, efficient expression in axon terminals was confirmed by the observation of EYFP-tagged ChR2 in CA1 regions containing Nkx2.1 interneuron axon terminals (stratum pyramidale and stratum lacunosum-moleculare; Fig. 5b). It should also be noted that differences in light-evoked IPSCs across different series of experiments may be due to other possible extraneous variables arising from different treatment conditions (Fig. 5, Wt and Tg mice comparison with no other treatment; Fig. 6, Wt and Tg mice comparison with acute slice vehicle versus drug treatment; Fig. 7, Wt and Tg mice comparison with i.p. injection of vehicle versus drug). Finally, we observed that the phenotype (reduction of optogenetically evoked IPSC amplitude in Tg relative to Wt mice) was similarly significant in all three series of independent experiments (Fig. 5, Tg vs Wt mice; Fig. 6 vehicle-treated Tg vs Wt mice; Fig. 7 vehicle-injected Tg vs Wt mice). Moreover, the rapamycin-treated group was significantly different from the vehicle only for the series of experiments in Tg mice after i.p. treatment (rescue of IPSC amplitude deficit; Fig. 7). Thus, our findings of significant results within individual series of experiments and that are repeatable across independent series of experiments suggest that although optogenetically evoked IPSC amplitude may show some variability across different series of experiments, these optogenetic responses show consistency within a given series of interleaved experiments allowing to detect significant differences and reach significant conclusions. Nonetheless, it would be of interest in future studies to test for such an inhibitory deficit by Nkx2.1 interneurons using triple transgenic mice with a ChR2f/wt allele for stable ChR2 expression (covering all MGE interneurons and avoiding injection artifacts) or performing paired recordings between EYFP+ interneurons and pyramidal cells in both genotypes.
Our results also indicate that dysregulated mTORC1 signaling in Nkx2.1 is responsible for the impaired inhibition. We found that mTORC1 signaling was elevated in SOM and PV interneurons, the two major subtypes of Nkx2.1 inhibitory interneurons, but was unaffected in total hippocampal cells, in mice with conditional Tsc1 haploinsufficiency (Fig. 1). This interneuron-specific mTORC1 hyperactivation in Nkx2.1 cells is consistent with the well-documented role of dysregulated mTORC1 in hippocampal principal cells of mice with global heterozygous Tsc2+/- [9, 10] or with conditional floxed homozygous Tsc1c/c [6, 9, 30]. Our observation that a 5-day treatment with the mTORC1 inhibitor rapamycin rescued the deficit in synaptic inhibition by Nkx2.1 cells in mice with conditional Tsc1 haploinsufficiency without affecting inhibition in control mice (Fig. 7) clearly shows that mTORC1 hyperactivation was causing the deficit in synaptic inhibition.
The mechanism by which mTORC1 hyperactivation in Nkx2.1 cells results in reduced inhibition remains to be determined. Since acute inhibition of mTORC1 by bath application of rapamycin in slices failed to rescue the deficit in inhibition (Fig. 6), long-term effects of mTORC1 activation on inhibition may be involved. It is well documented that mTORC1 is a critical regulator of protein synthesis involved in long-term plasticity of excitatory synapses in hippocampal pyramidal cells [31, 32]. However, mTORC1 is also involved in the regulation of synaptic plasticity in hippocampal inhibitory interneurons [33,34,35] and these mechanisms could be involved in the deficits in inhibition. First, a long-term depression of inhibitory synapses onto pyramidal cells is elicited by repeated theta-burst episodes of the postsynaptic firing of pyramidal cells and this depression is dependent on mTORC1-mediated protein synthesis in presynaptic inhibitory interneurons . If such mTORC1-mediated long-term depression of inhibition takes place at inhibitory synapses made by Nkx2.1 interneurons on pyramidal cells, it could explain that hyperactivation of mTORC1 in Nkx2.1 cells leads to depression of their output synapses by conditional Tsc1 haploinsufficiency. Second, mTORC1 activation by high-frequency synaptic stimulation results in a long-term potentiation of intrinsic excitability and action potential firing in hippocampal PV cells . If hyperactivation of mTORC1 in Nkx2.1 cells leads to impairment in long-term potentiation of PV cells firing, this may result in a reduction of activation of their output inhibitory synapses onto pyramidal cells. Finally, a long-term mGluR1a-mediated and mTORC1-dependent LTP is present at excitatory synapses onto SOM interneurons [21, 33]. In mice with conditional Tsc1 haploinsufficiency in SOM interneurons resulting in mTORC1 hyperactivation in SOM cells, the threshold for induction of LTP is lowered, but when elicited using normal induction conditions the LTP is blocked . Similar changes in plasticity of excitatory synapses onto SOM interneurons should be present in mice with Tsc1 haploinsufficiency in Nkx2.1 cells. Since Nkx2.1 interneurons in the hippocampus include PV and SOM interneurons, as well as nNOS-expressing ivy and neurogliaform cells [15, 18], the reduction in synaptic inhibition in conditional Tsc1 haploinsufficiencey in Nkx2.1 cells may arise from multiple interneuron-specific mTORC1 mechanisms in these cells.
Interestingly, mTORC1 is implicated in mGluR-mediated protein synthesis-dependent long-term depression (mGluR-LTD) of excitatory synapses in hippocampal pyramidal cells [36, 37] (but see ). In mice with pan-neuronal or forebrain principal cell-specific Tsc1 haploinsufficiency, mTORC1 signaling is hyperactivated and mGluR-LTD is impaired [10, 12, 13]. Given the depression of synaptic inhibition in mice with Tsc1 haploinsufficiency in Nkx2.1 cells, synaptic deficits resulting from Tsc1 haploinsufficiency and mTORC1 hyperactivation appear distinct in excitatory and inhibitory cells, further highlighting the multiple cell-specific mechanisms that may occur with Tsc1 haploinsufficiency. These findings are consistent with the multiple cortical cell type-specific (including excitatory, PV, and SOM cells) molecular changes recently identified by single-cell genomic analysis in ASD .
Recently, a deficit in miniature synaptic inhibition was reported in layer 2–3 pyramidal neurons of the visual cortex of mice with pan-neuronal Tsc1 haploinsufficiency . Mice with conditional Tsc1 haploinsufficiency in PV or SOM interneurons did not show such reduction in miniature synaptic inhibition, suggesting that the reduction of inhibition in pan-neuronal Tsc1 may be due to reduction of inhibition originating from inhibitory cell types other than PV and SOM or from multiple types of interneurons . Our results showing intact miniature inhibition but deficient inhibition by Nkx2.1 cells using interneuron-selective optogenetic stimulation raise the possibility that deficit in PV or SOM inhibition may be present. Another group recently reported that conditional heterozygous Tsc1 deletion in SOM interneurons resulted in neocortical layer 5 SOM interneuron mTORC1 hyperactivation, intact cell number, and soma size and increased PV co-expression in a subset of SOM cells . However, spontaneous and miniature synaptic inhibition, as well as optogenetically evoked SOM interneuron inhibition of pyramidal cells was also unchanged in these mice . In contrast, conditional homozygous Tsc1 deletion in SOM interneurons resulted in impaired spontaneous, miniature, and optogenetically evoked SOM inhibition of pyramidal cells . These results indicate that neocortical pyramidal cell inhibition generated by SOM interneurons is highly sensitive to Tsc1 gene dosage in SOM cells. However, a major difference between these studies and ours is that with Nkx2.1-Cre driver mice Tsc1 deletion occurs early in development, whereas with SOM- and PV-Cre mice, Tsc1 deletion occurs post-natally. Thus, heterozygous Tsc1 deletion early in development may be necessary for impairment in SOM and/or PV synaptic inhibition. This point may be relevant for TSC patients with germline or somatic mutations .
Finally, we observed correlated changes in hippocampal synaptic inhibition and cognitive impairments in mice with conditional Tsc1 haploinsufficiency in Nkx2.1 cells. Thus, it is interesting to speculate that the behavioral changes may be due to the synaptic deficits. Indeed, impairment in hippocampal PV cell inhibition results in impaired spatial working memory but intact spatial learning and spatial reference memory . Thus, the spatial working memory deficit we observed in mice with conditional Tsc1 haploinsufficiency in Nkx2.1 cells is consistent with a deficit in PV cell inhibition. It is of interest that improvement, and not impairment, in spatial and contextual fear learning and memory were found in mice with conditional Tsc1 haploinsufficiency in SOM interneurons , further suggesting that the behavioral changes observed in mice with conditional Tsc1 haploinsufficiency in Nkx2.1 cells may predominantly originate from impairments in PV interneuron function. Further synaptic and behavioral studies with conditional Tsc1 haploinsufficiency early in development and specifically in PV, SOM, and other interneurons will be important to dissect the specific contributions of different hippocampal interneuron types to the cellular and cognitive deficits in TSC mouse models.
A limitation of our work is that the experimental conditions with AAV-driven ChR2 expression used in the optogenetic experiments might lead to spurious results due to insufficient and/or variable expression of ChR2 across different experimental groups or even animals. New experiments could be performed to control for this potential source of variability and validate our findings by using mice with Tsc1 haploinsufficiency expressing Cre-dependent ChR2 under the control of the Nkx2.1 promoter to ensure that the level of expression and overall population of ChR2 expressing cells would be the same across conditions/mice.
Another limitation of our study is the small sample size in some groups of the experiments with patch-clamp recordings of optogenetically evoked IPSCs. The small sample size in some groups is due to the variability of successful experiments in the different groups during interleaved experiments for which the experimenter was blind to genotype and treatment conditions. The differences in IPSC amplitude among groups suggest that there could be variability in ChR2 expression using our experimental design. Thus, additional experiments using the triple transgenic mice with stable ChR2 expression across the Nkx2.1 cell population with Tsc1 haploinsufficiency would address also this limitation.
We found that Tsc1 haploinsufficiency in the MGE-derived Nkx2.1-expressing inhibitory cells upregulates mTORC1 activity in these interneurons in the hippocampus, reduces their synaptic inhibition of pyramidal cells, and alters contextual fear discrimination and spatial working memory. Thus, selective dysregulation of mTORC1 function in Nkx2.1 inhibitory cells appears sufficient to impair synaptic inhibition and contributes to cognitive deficits in the Tsc1 mouse model of TSC. Specifically targeting mTORC1 function in inhibitory cells may thus represent an interesting novel strategy for addressing specific cognitive impairments due to TSC haploinsufficiency in ASD.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Artificial cerebrospinal fluid
Autism spectrum disorders
Caudal ganglionic eminence
Enhanced yellow fluorescent protein
Inhibitory postsynaptic current
Miniature excitatory postsynaptic current
Medial ganglionic eminence
Miniature inhibitory postsynaptic current
Mechanistic target of rapamycin complex 1
NK2 homeobox 1
Neuronal nitric oxide synthase
Tuberous sclerosis complex
Resting membrane potential
Napolioni V, Curatolo P. Genetics and molecular biology of tuberous sclerosis complex. Curr Genomics. 2008;9(7):475–87.
Jeste SS, Sahin M, Bolton P, Ploubidis GB, Humphrey A. Characterization of autism in young children with tuberous sclerosis complex. J Child Neurol. 2008;23(5):520–5.
Sonenberg N, Hinnebusch AG. Regulation of translation initiation in eukaryotes: mechanisms and biological targets. Cell. 2009;136(4):731–45.
Costa-Mattioli M, Monteggia LM. mTOR complexes in neurodevelopmental and neuropsychiatric disorders. Nat Neurosci. 2013;16(11):1537–43.
Sahin M, Sur M: Genes, circuits, and precision therapies for autism and related neurodevelopmental disorders. Science 2015, 350(6263).
Bateup HS, Johnson CA, Denefrio CL, Saulnier JL, Kornacker K, Sabatini BL. Excitatory/inhibitory synaptic imbalance leads to hippocampal hyperexcitability in mouse models of tuberous sclerosis. Neuron. 2013;78(3):510–22.
Tsai PT, Hull C, Chu Y, Greene-Colozzi E, Sadowski AR, Leech JM, Steinberg J, Crawley JN, Regehr WG, Sahin M. Autistic-like behaviour and cerebellar dysfunction in Purkinje cell Tsc1 mutant mice. Nature. 2012;488(7413):647–51.
Goorden SM, van Woerden GM, van der Weerd L, Cheadle JP, Elgersma Y. Cognitive deficits in Tsc1+/- mice in the absence of cerebral lesions and seizures. Ann Neurol. 2007;62(6):648–55.
Ehninger D, Han S, Shilyansky C, Zhou Y, Li W, Kwiatkowski DJ, Ramesh V, Silva AJ. Reversal of learning deficits in a Tsc2+/- mouse model of tuberous sclerosis. Nat Med. 2008;14(8):843–8.
Auerbach BD, Osterweil EK, Bear MF. Mutations causing syndromic autism define an axis of synaptic pathophysiology. Nature. 2011;480(7375):63–8.
von der Brelie C, Waltereit R, Zhang L, Beck H, Kirschstein T. Impaired synaptic plasticity in a rat model of tuberous sclerosis. Eur J Neurosci. 2006;23(3):686–92.
Bateup HS, Takasaki KT, Saulnier JL, Denefrio CL, Sabatini BL. Loss of Tsc1 in vivo impairs hippocampal mGluR-LTD and increases excitatory synaptic function. J Neurosci. 2011;31(24):8862–9.
Chevere-Torres I, Kaphzan H, Bhattacharya A, Kang A, Maki JM, Gambello MJ, Arbiser JL, Santini E, Klann E. Metabotropic glutamate receptor-dependent long-term depression is impaired due to elevated ERK signaling in the DeltaRG mouse model of tuberous sclerosis complex. Neurobiol Dis. 2012;45(3):1101–10.
Rubenstein JL, Merzenich MM. Model of autism: increased ratio of excitation/inhibition in key neural systems. Genes Brain Behav. 2003;2(5):255–67.
Pelkey KA, Chittajallu R, Craig MT, Tricoire L, Wester JC, McBain CJ. Hippocampal GABAergic inhibitory interneurons. Physiol Rev. 2017;97(4):1619–747.
Tavazoie SF, Alvarez VA, Ridenour DA, Kwiatkowski DJ, Sabatini BL. Regulation of neuronal morphology and function by the tumor suppressors Tsc1 and Tsc2. Nat Neurosci. 2005;8(12):1727–34.
Kepecs A, Fishell G. Interneuron cell types are fit to function. Nature. 2014;505(7483):318–26.
Tricoire L, Pelkey KA, Erkkila BE, Jeffries BW, Yuan X, McBain CJ. A blueprint for the spatiotemporal origins of mouse hippocampal interneuron diversity. J Neurosci. 2011;31(30):10948–70.
Kwiatkowski DJ, Zhang H, Bandura JL, Heiberger KM. Glogauer M, el-Hashemite N, Onda H: A mouse model of TSC1 reveals sex-dependent lethality from liver hemangiomas, and up-regulation of p70S6 kinase activity in Tsc1 null cells. Hum Mol Genet. 2002;11(5):525–34.
Luo L, Ambrozkiewicz MC, Benseler F, Chen C, Dumontier E, Falkner S, Furlanis E, Gomez AM, Hoshina N, Huang WH, et al. Optimizing nervous system-specific gene targeting with Cre driver lines: prevalence of germline recombination and influencing factors. Neuron. 2020.
Artinian J, Jordan A, Khlaifia A, Honore E, La Fontaine A, Racine AS, Laplante I, Lacaille JC. Regulation of hippocampal memory by mTORC1 in somatostatin interneurons. J Neurosci. 2019;39(43):8439–56.
Vasuta C, Artinian J, Laplante I, Hébert-Seropian S, Elayoubi K, Lacaille J-C. Metaplastic regulation of CA1 Schaffer collateral pathway plasticity by Hebbian MGluR1a-mediated plasticity at excitatory synapses onto somatostatin-expressing interneurons. eNeuro. 2015;2(4):1–16.
Ruediger S, Vittori C, Bednarek E, Genoud C, Strata P, Sacchetti B, Caroni P. Learning-related feedforward inhibitory connectivity growth required for memory precision. Nature. 2011;473(7348):514–8.
Wiltgen BJ, Silva AJ. Memory for context becomes less specific with time. Learn Mem. 2007;14(4):313–7.
Sunyer B, Patil S, Frischer C, Hoger H, Selcher J, Brannath W, Lubec G. Strain-dependent effects of SGS742 in the mouse. Behav Brain Res. 2007;181(1):64–75.
Ehninger D, Silva AJ. Rapamycin for treating tuberous sclerosis and autism spectrum disorders. Trends Mol Med. 2011;17(2):78–87.
Maccaferri G, Roberts JD, Szucs P, Cottingham CA, Somogyi P. Cell surface domain specific postsynaptic currents evoked by identified GABAergic neurones in rat hippocampus in vitro. J Physiol. 2000;524(Pt 1):91–116.
Cossart R, Hirsch JC, Cannon RC, Dinoncourt C, Wheal HV, Ben-Ari Y, Esclapez M, Bernard C. Distribution of spontaneous currents along the somato-dendritic axis of rat hippocampal CA1 pyramidal neurons. Neuroscience. 2000;99(4):593–603.
Neu A, Foldy C, Soltesz I. Postsynaptic origin of CB1-dependent tonic inhibition of GABA release at cholecystokinin-positive basket cell to pyramidal cell synapses in the CA1 region of the rat hippocampus. J Physiol. 2007;578(Pt 1):233–47.
Meikle L, Talos DM, Onda H, Pollizzi K, Rotenberg A, Sahin M, Jensen FE, Kwiatkowski DJ. A mouse model of tuberous sclerosis: neuronal loss of Tsc1 causes dysplastic and ectopic neurons, reduced myelination, seizure activity, and limited survival. J Neurosci. 2007;27(21):5546–58.
Tang SJ, Reis G, Kang H, Gingras AC, Sonenberg N, Schuman EM. A rapamycin-sensitive signaling pathway contributes to long-term synaptic plasticity in the hippocampus. Proc Natl Acad Sci U S A. 2002;99(1):467–72.
Costa-Mattioli M, Sossin WS, Klann E, Sonenberg N. Translational control of long-lasting synaptic plasticity and memory. Neuron. 2009;61(1):10–26.
Ran I, Laplante I, Bourgeois C, Pepin J, Lacaille P, Costa-Mattioli M, Pelletier J, Sonenberg N, Lacaille JC. Persistent transcription- and translation-dependent long-term potentiation induced by mGluR1 in hippocampal interneurons. J Neurosci. 2009;29(17):5605–15.
Campanac E, Gasselin C, Baude A, Rama S, Ankri N, Debanne D. Enhanced intrinsic excitability in basket cells maintains excitatory-inhibitory balance in hippocampal circuits. Neuron. 2013;77(4):712–22.
Younts TJ, Monday HR, Dudok B, Klein ME, Jordan BA, Katona I, Castillo PE. Presynaptic protein synthesis is required for long-term plasticity of GABA release. Neuron. 2016;92(2):479–92.
Hou L, Klann E. Activation of the phosphoinositide 3-kinase-Akt-mammalian target of rapamycin signaling pathway is required for metabotropic glutamate receptor-dependent long-term depression. J Neurosci. 2004;24(28):6352–61.
Luscher C, Huber KM. Group 1 mGluR-dependent synaptic long-term depression: mechanisms and implications for circuitry and disease. Neuron. 2010;65(4):445–59.
Zhu PJ, Chen CJ, Mays J, Stoica L, Costa-Mattioli M. mTORC2, but not mTORC1, is required for hippocampal mGluR-LTD and associated behaviors. Nat Neurosci. 2018;21(6):799–802.
Velmeshev D, Schirmer L, Jung D, Haeussler M, Perez Y, Mayer S, Bhaduri A, Goyal N, Rowitch DH, Kriegstein AR. Single-cell genomics identifies cell type-specific molecular changes in autism. Science. 2019;364(6441):685–9.
Zhao JP, Yoshii A. Hyperexcitability of the local cortical circuit in mouse models of tuberous sclerosis complex. Mol Brain. 2019;12(1):6.
Malik R, Pai EL, Rubin AN, Stafford AM, Angara K, Minasi P, Rubenstein JL, Sohal VS, Vogt D. Tsc1 represses parvalbumin expression and fast-spiking properties in somatostatin lineage cortical interneurons. Nat Commun. 2019;10(1):4994.
Murray AJ, Sauer JF, Riedel G, McClure C, Ansel L, Cheyne L, Bartos M, Wisden W, Wulff P. Parvalbumin-positive CA1 interneurons are required for spatial working but not for reference memory. Nat Neurosci. 2011;14(3):297–9.
The authors wish to thank Julie Pépin for her technical support and members of the Lacaille laboratory for helpful discussions.
This work was supported by grants from the Canadian Institutes of Health Research (CIHR MOP-125985 and PJT-153311) and an infrastructure grant (Groupe de Recherche sur le Système Nerveux Central; GRSNC) from the Fonds de la Recherche du Québec – Santé (FRQS) to J-CL. JCL is the recipient of the Canada Research Chair in Cellular and Molecular Neurophysiology (CRC 950-231066). IR was supported by postdoctoral fellowships from the GRSNC (Herbert Jasper fellowship) and Savoy Foundation, and JA and AAV by postdoctoral fellowships from the FRQS.
Ethics approval and consent to participate
All animal procedures and experiments were performed in accordance with guidelines for maintenance and care of animals of the Canadian Council of Animal Care and in accordance with the Université de Montréal animal care committee regulations (Protocols 18-002 and 18-003; 19-003 and 19-004).
Consent for publication
The authors declare that they have no competing interests.
